Flourescent Wide Area Lamps

  • 6300 lumens
  • 25' 16/3 S00W cord

Task lighting in hazardous locations demands the utmost care. The Woodhead Tubelite portable hazardous-duty wide area purge light actively prevents the entry of explosive vapors into the unit by continuously purging potentially dangerous gases from tht fixture. This is accomplished by attaching a supply of air through the light, certifying it by the CSA for Class I, Division I, Groups C7D (fla,,able gasses and vapors) and Class II, Division I, Groups F7G (ignitable dust).

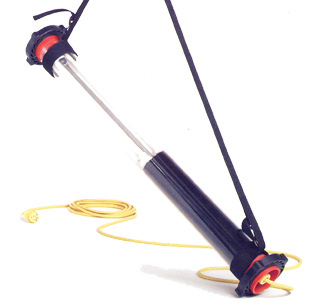

(part no. 2030PLX25 pictured on right)

Hazardous Duty Wide Area Lighting (PDF) (372 KB)

Flourescent Wide Area Tube Light
Part No. Fixture
Voltage
Lamp
Wattage
Cord
Type
Cord
Length
Lumens
2000PLX25 120V/60HZ 120W 16/3 S00W 25' 11400
20001PLX50 120V/60HZ 120W 16/3 S00W 50'
2030PLX25 120V/60HZ 80W 16/3 S00W 25'
2030PLX50 120V/60HZ 80W 16/3 S00W 50'
  CLICK ON A PART NUMBER FOR MORE OPTIONS
Replacement Parts
Part No. Description
36-2005 SHIELD ASSEMBLY FOR 128W HAZTEX TUBE LIGHT
36-2006 SHIELD ASSEMBLY FOR 80W HAZTEX TUBE LIGHT
  CLICK ON A PART NUMBER FOR MORE OPTIONS
