Hand Lamps | Wet Location - Low Voltage, Incandescent, 75W
Portable Lighting
Hand Lamp
- 5-15 NEMA plug
- in line transformer
- 120V/60HZ primary fixture voltage
Woodhead offers an extensive line of wet location lighting solutions that meet and exceed the OSHA requirements for wet location use. U.L. listed NEMA 4X for damp locations, these Watertite incandescent hand lamps are the toughh industrial tools you can rely on for the desired level of illumination and protection needed in wet work areas.

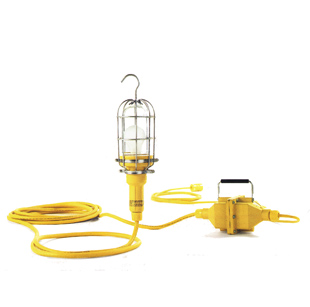

(part no. 1621-12A pictured on right)
Wet Location Handlamps (PDF) (372 KB)
Incandescent Hand Lamps for Wet Locations
| Part No. | Primary Voltage |
Secondary Voltage |
Steel Guard |
Cast Aluminum Guard |
Teflon Guard |
Primary Cord Type |
Secondary Cord Type |
NEMA Config. |
Cord Length |
| 1621-12B | 120V/60HZ | 12VAC | • | 16/3 S00W | 14/2 S00W | NEMA 5-15 | 50' | ||
| 1625-12B | 120V/60HZ | 12VAC | • | 16/3 S00W | 14/2 S00W | NEMA 5-15 | 50' | ||
| 1631-12B | 120V/60HZ | 12VAC | • | 16/3 S00W | 14/2 S00W | NEMA 5-15 | 50' | ||
| 1621-12A | 120V/60HZ | 12VAC | • | 16/3 S00W | 14/2 S00W | NEMA 5-15 | 50' | ||
| 1649-12 | 120VAC/DC | -- | • | 14/2 S00W | -- | NON-NEMA | 25' | ||
| 1621-12B-P | 120V/60HZ | 12VAC | • | 16/3 S00W | 14/2 S00W | -- | 50' | ||
| 1625-12A | 120V/60HZ | 12VAC | • | 16/3 S00W | 14/2 S00W | NEMA 5-15 | 50' | ||
| 1631-12A | 120V/60HZ | 12VAC | • | 16/3 S00W | 14/2 S00W | NEMA 5-15 | 50' | ||
| 1646-12 | 120VAC/DC | -- | • | 14/2 S00W | -- | NON_NEMA | 25' | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||
