Heavy-Duty GFCI Outlet Boxes
Portable Outlet Boxes

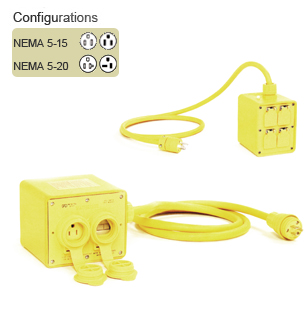

Heavy-Duty GFCI Outlet Box
This heavy-duty angled outlet box of molded NEōTEX rubber with non-metallic or rubber coated metal cover plates, accommodates two single, two duplex, or three single receptacles protected by a GFCI switch. This box also features an open-neutral sensing relay which detects and prevents operation under life-threatening conditions. The Watertite receptacles are protected by rubber closure caps when they are not in use. The MAX-LOC cord grip secures the high quality 12/3 SOOW cable used on this product with Super Safeway plugs on weather-resistant versions and Watertite plugs on the wet location product.
GFCI Outlet Boxes (PDF) (608 KB)
15 Amp Heavy-Duty GFCI Outlet Box
| Part No. | AMPS | HZ | VOLTS | Cord Length | Continuity Monitor |
Weather-Resist Flip Lids |
Watertite Outlets |
NEMA Configuration |
|
| 32G15L123 | 15 A | 50/60 HZ | 120 VAC | 6' | -- | • | -- | NEMA 5-15 | |
| 32G15A123 | 15 A | 50/60 HZ | 120 VAC | 25' | -- | • | -- | NEMA 5-15 | |
| 32G15B123 | 15 A | 50/60 HZ | 120 VAC | 50' | -- | • | -- | NEMA 5-15 | |
| 32GM15L123 | 15 A | 50/60 HZ | 120 VAC | 6' | • | • | -- | NEMA 5-15 | |
| 32GM15A123 | 15 A | 50/60 HZ | 120 VAC | 25' | • | • | -- | NEMA 5-15 | |
| 32GM15B123 | 15 A | 50/60 HZ | 120 VAC | 50' | • | • | -- | NEMA 5-15 | |
| 32HG15L123 | 15 A | 50/60 HZ | 120 VAC | 6' | -- | -- | 2 | NEMA 5-15 | |
| 32HG15A123 | 15 A | 50/60 HZ | 120 VAC | 25' | -- | -- | 2 | NEMA 5-15 | |
| 32HG15B123 | 15 A | 50/60 HZ | 120 VAC | 50' | -- | -- | 2 | NEMA 5-15 | |
| 32WG15L123 | 15 A | 50/60 HZ | 120 VAC | 6' | -- | -- | 3 | NEMA 5-15 | |
| 32WG15A123 | 15 A | 50/60 HZ | 120 VAC | 25' | -- | -- | 3 | NEMA 5-15 | |
| 32WG15B123 | 15 A | 50/60 HZ | 120 VAC | 50' | -- | -- | 3 | NEMA 5-15 | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||
20 Amp Heavy-Duty GFCI Outlet Box
| Part No. | AMPS | HZ | VOLTS | Cord Length | Continuity Monitor |
Weather-Resist Flip Lids |
Watertite Outlets |
NEMA Configuration |
|
| 32G20L123 | 15 A | 50/60 HZ | 120 VAC | 6' | -- | • | -- | NEMA 5-20 | |
| 32G20A123 | 15 A | 50/60 HZ | 120 VAC | 25' | -- | • | -- | NEMA 5-20 | |
| 32G20B123 | 15 A | 50/60 HZ | 120 VAC | 50' | -- | • | -- | NEMA 5-20 | |
| 32GM20L123 | 15 A | 50/60 HZ | 120 VAC | 6' | • | • | -- | NEMA 5-20 | |
| 32GM20A123 | 15 A | 50/60 HZ | 120 VAC | 25' | • | • | -- | NEMA 5-20 | |
| 32GM20B123 | 15 A | 50/60 HZ | 120 VAC | 50' | • | • | -- | NEMA 5-20 | |
| 32HG20L123 | 15 A | 50/60 HZ | 120 VAC | 6' | -- | -- | 2 | NEMA 5-20 | |
| 32HG20A123 | 15 A | 50/60 HZ | 120 VAC | 25' | -- | -- | 2 | NEMA 5-20 | |
| 32HG20B123 | 15 A | 50/60 HZ | 120 VAC | 50' | -- | -- | 2 | NEMA 5-20 | |
| 32WG20L123 | 15 A | 50/60 HZ | 120 VAC | 6' | -- | -- | 3 | NEMA 5-20 | |
| 32WG20A123 | 15 A | 50/60 HZ | 120 VAC | 25' | -- | -- | 3 | NEMA 5-20 | |
| 32WG20B123 | 15 A | 50/60 HZ | 120 VAC | 50' | -- | -- | 3 | NEMA 5-20 | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||
