GFCI Portable Workstation & Pendant Boxes
Portable Outlet Boxes
GFCI Portable Workstation
& GFCI Pendant Boxes

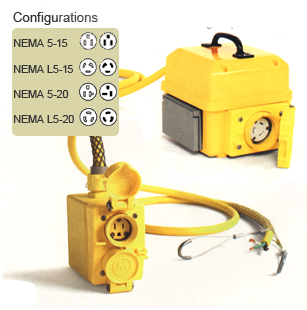

Woodhead GFCI flexible solutions are available with portable workstations and drop-down pendant boxes. Workstations are molded of high-strength, non-conductive, glass-reinforced polyester while pendant boxes deliver power to remote locations with NEōTEX rubber enclosures and Watertite duplex receptacles which meet the requirements of NEMA type 4X when properly mated with Woodhead Watertite plug. GFCI pendant stations also feature proper strain and support relief with wire mesh grips for proper installation. These boxes also feature an open-neutral sensing relay which detects and prevents operation under life-threatening conditions.
GFCI Outlet Boxes (PDF) (608 KB)
GFCI Portable Workstation
| Part No. | AMPS | HZ | VOLTS | Side A Configuration |
Side B Configuration |
Side C Configuration |
Plug Configuration |
||
| 3493 | 15 A | 50/60 HZ | 120 VAC | Duplex NEMA 5-15 | Duplex NEMA 5-15 | Duplex NEMA 5-15 | NEMA 5-15 | ||
| 3494 | 20 A | 50/60 HZ | 120 VAC | Duplex NEMA 5-15 | Duplex NEMA 5-20 | Duplex NEMA 5-20 | NEMA 5-20 | ||
| 3492 | 20 A | 50/60 HZ | 120 VAC | Duplex NEMA 5-15 | Single NEMA L5-20 | Single NEMA L5-20 | NEMA 5-20 | ||
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||
GFCI Pendant Boxes
| Part No. | AMPS | HZ | VOLTS | Cord Length | Cord Type | Duplex Receptacles |
Single Receptacle |
Locking Blade |
NEMA Configuration |
| 70W47L143GF | 15 A | 50/60 HZ | 120 VAC | 6' | 14/3 SOOW | • | -- | -- | NEMA 5-15 |
| 70W47M143GF | 15 A | 50/60 HZ | 120 VAC | 15' | 14/3 SOOW | • | -- | -- | NEMA 5-15 |
| 70W47A143GF | 15 A | 50/60 HZ | 120 VAC | 25' | 14/3 SOOW | • | -- | -- | NEMA 5-15 |
| 75W47L143GF | 15 A | 50/60 HZ | 120 VAC | 6' | 14/3 SOOW | • | -- | • | NEMA L5-15 |
| 75W47M143GF | 15 A | 50/60 HZ | 120 VAC | 15' | 14/3 SOOW | • | -- | • | NEMA L5-15 |
| 75W47A143GF | 15 A | 50/60 HZ | 120 VAC | 25' | 14/3 SOOW | • | -- | • | NEMA L5-15 |
| 70W33L123GF | 20 A | 50/60 HZ | 120 VAC | 6' | 12/3 SOOW | • | -- | -- | NEMA 5-20 |
| 70W33M123GF | 20 A | 50/60 HZ | 120 VAC | 15' | 12/3 SOOW | • | -- | -- | NEMA 5-20 |
| 70W33A123GF | 20 A | 50/60 HZ | 120 VAC | 25' | 12/3 SOOW | • | -- | -- | NEMA 5-20 |
| 77W47L123GF | 20 A | 50/60 HZ | 120 VAC | 6' | 12/3 SOOW | -- | • | • | NEMA L5-20 |
| 77W47M123GF | 20 A | 50/60 HZ | 120 VAC | 15' | 12/3 SOOW | -- | • | • | NEMA L5-20 |
| 77W47A123GF | 20 A | 50/60 HZ | 120 VAC | 25' | 12/3 SOOW | -- | • | • | NEMA L5-20 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||||||
