Pendant Drops | 3000 Series
Portable Outlet Boxes
Pre-Wired Pendant Drops

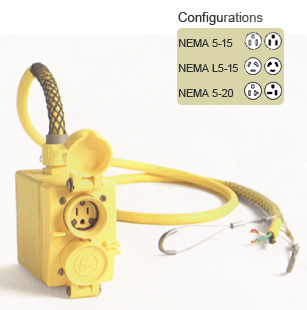

UL listed, CSA certified for damp or wet locations. Local protection for worksites where permanent outlets are not available. Two Watertite single or duplex receptacles are mounted on a durable corrosion-resistant NEōTEX rubber enclosure with spring-loaded flip lid covers. Meets the requirements of NEMA type 4X when preperly mated with a Woodhead Watertite plug. MAX-LOC cord grip and wire mesh cord grip are standard. Available in 15A and 20A straight blade or locking configurations.
Multiple Outlet Boxes (PDF) (462 KB)
Pre-Wired Pendant Drops
| Part No. | Cord Type | Cord Length | 2 Duplex Receptacles |
2 Watertite Receptacles |
Configuration |
| 70W47L143 | 14/3 SOOW | 6' | • | -- | NEMA 5-15 |
| 70W47m143 | 14/3 SOOW | 15' | • | -- | NEMA 5-15 |
| 70W47A143 | 14/3 SOOW | 25' | • | -- | NEMA 5-15 |
| 75W47L143 | 14/3 SOOW | 6' | • | -- | NEMA L5-15 |
| 75W47m143 | 14/3 SOOW | 15' | • | -- | NEMA L5-15 |
| 75W47A143 | 14/3 SOOW | 25' | • | -- | NEMA L5-15 |
| 70W33L123 | 12/3 SOOW | 6' | • | -- | NEMA 5-20 |
| 70W33m123 | 12/3 SOOW | 15' | • | -- | NEMA 5-20 |
| 70W33A123 | 12/3 SOOW | 25' | • | -- | NEMA 5-20 |
| 77W47L123 | 12/3 SOOW | 6' | -- | • | NEMA L5-20 |
| 77W47m123 | 12/3 SOOW | 15' | -- | • | NEMA L5-20 |
| 77W47A123 | 12/3 SOOW | 25' | -- | • | NEMA L5-20 |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | |||||
