30 Amp SUPER-SAFEWAY® Cordsets
125V/208V - 4 Pole, 5 Wire, 3ø - NEMA L21-30
277/480V - 4 Pole, 5 Wire, 3ø - NEMA L22-30
347V/600V - 4 Pole, 5 Wire, 3ø - NEMA L23-30
30 Amp Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

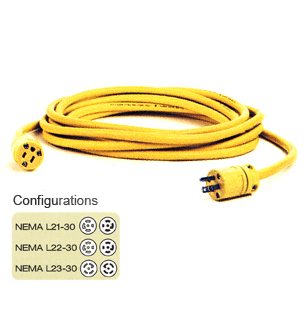

(part no. 14W33_143 pictured on right)
30 Amp Wiring Devices (PDF) (372 KB)
30 Amp SUPER-SAFEWAY® Cordsets 125V/208V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 2881A 105 | 2881A 125 | 125V/208V, 3ø | NEMA L21-30 | 25 FT | ||
| 2881A 105BLK | 2881A 125BLK | 125V/208V, 3ø | NEMA L21-30 | 25 FT | • | |
| 2881B 105 | 2881B 125 | 125V/208V, 3ø | NEMA L21-30 | 50 FT | ||
| 2881B 105BLK | 2881B 125BLK | 125V/208V, 3ø | NEMA L21-30 | 50 FT | • | |
| 2881D 105 | 28814D 125 | 125V/208V, 3ø | NEMA L21-30 | 100 FT | ||
| 2881D 105BLK | 2881D 125BLK | 125V/208V, 3ø | NEMA L21-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp SUPER-SAFEWAY® Cordsets 277/480V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 2882A 105 | 2882A 125 | 277/480V, 3ø | NEMA L22-30 | 25 FT | ||
| 2882A 105BLK | 2882A 125BLK | 277/480V, 3ø | NEMA L22-30 | 25 FT | • | |
| 2882B 105 | 2882B 125 | 277/480V, 3ø | NEMA L22-30 | 50 FT | ||
| 2882B 105BLK | 2882B 125BLK | 277/480V, 3ø | NEMA L22-30 | 50 FT | • | |
| 2882D 105 | 2882D 125 | 277/480V, 3ø | NEMA L22-30 | 100 FT | ||
| 2882D 105BLK | 2882D 125BLK | 277/480V, 3ø | NEMA L22-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp SUPER-SAFEWAY® Cordsets 347V/600V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 2883A 105 | 2883A 125 | 347V/600V, 3ø | NEMA L23-30 | 25 FT | ||
| 2883A 105BLK | 2883A 125BLK | 347V/600V, 3ø | NEMA L23-30 | 25 FT | • | |
| 2883B 105 | 2883B 125 | 347V/600V, 3ø | NEMA L23-30 | 50 FT | ||
| 2883B 105BLK | 2883B 125BLK | 347V/600V, 3ø | NEMA L23-30 | 50 FT | • | |
| 2883D 105 | 2883D 125 | 347V/600V, 3ø | NEMA L23-30 | 100 FT | ||
| 2883D 105BLK | 2883D 125BLK | 347V/600V, 3ø | NEMA L23-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
