30 Amp SUPER-SAFEWAY® Cordsets
125V/250V - 3 Pole, 4 Wire - NEMA L14-30
1250V - 3 Pole, 4 Wire, 3ø - NEMA L15-30
480V - 3 Pole, 4 Wire, 3ø - NEMA L16-30
600V - 4 Pole, 4 Wire, 3ø - NEMA L17-30
30 Amp Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

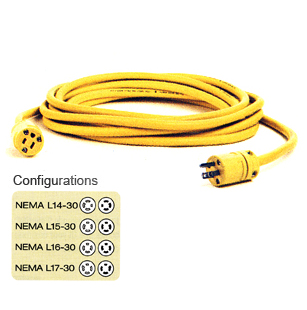

(part no. 14W33_143 pictured on right)
30 Amp Wiring Devices (PDF) (372 KB)
30 Amp SUPER-SAFEWAY® Cordsets 125V/250V
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 2874A 104 | 2874A 124 | 125V/250V | NEMA L14-30 | 25 FT | ||
| 2874A 104BLK | 2874A 124BLK | 125V/250V | NEMA L14-30 | 25 FT | • | |
| 2874B 104 | 2874B 124 | 125V/250V | NEMA L14-30 | 50 FT | ||
| 2874B 104BLK | 2874B 124BLK | 125V/250V | NEMA L14-30 | 50 FT | • | |
| 2874D 104 | 2874D 124 | 125V/250V | NEMA L14-30 | 100 FT | ||
| 2874D 104BLK | 2874D 124BLK | 125V/250V | NEMA L14-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp SUPER-SAFEWAY® Cordsets 250V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 2875A 104 | 2875A 124 | 250V, 3ø | NEMA L15-30 | 25 FT | ||
| 2875A 104BLK | 2875A 124BLK | 250V, 3ø | NEMA L15-30 | 25 FT | • | |
| 2875B 104 | 2875B 124 | 250V, 3ø | NEMA L15-30 | 50 FT | ||
| 2875B 104BLK | 2875B 124BLK | 250V, 3ø | NEMA L15-30 | 50 FT | • | |
| 2875D 104 | 2875D 124 | 250V, 3ø | NEMA L15-30 | 100 FT | ||
| 2875D 104BLK | 2875D 124BLK | 250V, 3ø | NEMA L15-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp SUPER-SAFEWAY® Cordsets 480V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 2876A 104 | 2876A 124 | 480V, 3ø | NEMA L16-30 | 25 FT | ||
| 2876A 104BLK | 2876A 124BLK | 480V, 3ø | NEMA L16-30 | 25 FT | • | |
| 2876B 104 | 2876B 124 | 480V, 3ø | NEMA L16-30 | 50 FT | ||
| 2876B 104BLK | 2876B 124BLK | 480V, 3ø | NEMA L16-30 | 50 FT | • | |
| 2876D 104 | 2876D 124 | 480V, 3ø | NEMA L16-30 | 100 FT | ||
| 2876D 104BLK | 2876D 124BLK | 480V, 3ø | NEMA L16-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp SUPER-SAFEWAY® Cordsets 600V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 2877A 104 | 2877A 124 | 600V, 3ø | NEMA L17-30 | 25 FT | ||
| 2877A 104BLK | 2877A 124BLK | 600V, 3ø | NEMA l17-30 | 25 FT | • | |
| 2877B 104 | 2877B 124 | 600V, 3ø | NEMA l17-30 | 50 FT | ||
| 2877B 104BLK | 2877B 124BLK | 600V, 3ø | NEMA l17-30 | 50 FT | • | |
| 2877D 104 | 2877D 124 | 600V, 3ø | NEMA l17-30 | 100 FT | ||
| 2877D 104BLK | 2877D 124BLK | 600V, 3ø | NEMA l17-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
