30 Amp WATERTITE® Cordsets
125V - 2-Pole, 3-Wire - NEMA L5-30
250V - 2-Pole, 3-Wire - NEMA L6-30
277V - 2-Pole, 3-Wire - NEMA L7-30
30 Amp Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

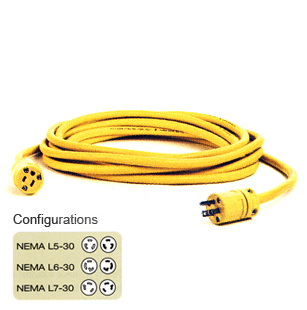

(part no. 14W33_143 pictured on right)
30 Amp Wiring Devices (PDF) (372 KB)
30 Amp WATERTITE® Cordsets 125V
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 2847A 103 | 2847A 123 | 125V | NEMA l5-30 | 25 FT | ||
| 2847A 103BLK | 2847A 123BLK | 125V | NEMA l5-30 | 25 FT | • | |
| 2847B 103 | 2847B 123 | 125V | NEMA l5-30 | 50 FT | ||
| 2847B 103BLK | 2847B 123BLK | 125V | NEMA l5-30 | 50 FT | • | |
| 2847D 103 | 2847D 123 | 125V | NEMA l5-30 | 100 FT | ||
| 2847D 103BLK | 2847D 123BLK | 125V | NEMA l5-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp WATERTITE® Cordsets 250V
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 2848A 103 | 2848A 123 | 250V | NEMA l6-30 | 25 FT | ||
| 2848A 103BLK | 2848A 123BLK | 250V | NEMA l6-30 | 25 FT | • | |
| 2848B 103 | 2848B 123 | 250V | NEMA l6-30 | 50 FT | ||
| 2848B 103BLK | 2848B 123BLK | 250V | NEMA l6-30 | 50 FT | • | |
| 2848D 103 | 2848D 123 | 250V | NEMA l6-30 | 100 FT | ||
| 2848D 103BLK | 2848D 123BLK | 250V | NEMA l6-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp WATERTITE® Cordsets 277V
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 2849A 103 | 2849A 123 | 277V | NEMA l7-30 | 25 FT | ||
| 2849A 103BLK | 2849A 123BLK | 277V | NEMA l7-30 | 25 FT | • | |
| 2849B 103 | 2849B 123 | 277V | NEMA l7-30 | 50 FT | ||
| 2849B 103BLK | 2849B 123BLK | 277V | NEMA l7-30 | 50 FT | • | |
| 2849D 103 | 2849D 123 | 277V | NEMA l7-30 | 100 FT | ||
| 2849D 103BLK | 2849D 123BLK | 277V | NEMA l7-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
