15 Amp WATERTITE® Cordsets
250V - 2 Pole, 3 Wire - NEMA 6-15 / NEMA L6-15
15 Amp Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

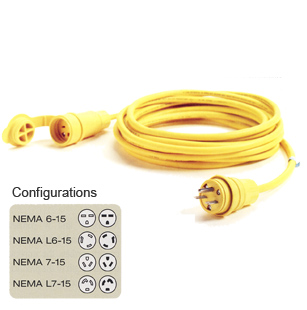

(part no. 14W49A_163 pictured on right)
15 Amp Wiring Devices (PDF) (372 KB)
15 Amp WATERTITE® Cordsets
| 16 Gauge SOW Cordsets |
14 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
Inline GFCI |
UV Resistant Black |
| 14W49A 163 | 14W49A 143 | 250V | NEMA 6-15 | 25 FT | ||
| 14W49A163IN | 14W49A 143IN | 250V | NEMA 6-15 | 25 FT | • | |
| 14W49A 163BLK | 14W49A 143BLK | 250V | NEMA 6-15 | 25 FT | • | |
| 14W49B 163 | 14W49B 143 | 250V | NEMA 6-15 | 50 FT | ||
| 14W49B 163IN | 14W49B 143IN | 250V | NEMA 6-15 | 50 FT | • | |
| 14W49B 163BLK | 14W49B 143BLK | 250V | NEMA 6-15 | 50 FT | • | |
| 14W49D 163 | 14W49D 143 | 250V | NEMA 6-15 | 100 FT | ||
| 14W49D163IN | 14W49D 143IN | 250V | NEMA 6-15 | 100 FT | • | |
| 14W49D 163BLK | 14W49D 143BLK | 250V | NEMA 6-15 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
15 Amp WATERTITE® Cordsets with Locking Blade
| 16 Gauge SOW Cordsets |
14 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
Inline GFCI |
UV Resistant Black |
| 24W49A 163 | 24W49A 143 | 250V | NEMA L6-15 | 25 FT | ||
| 24W49A 163IN | 24W49A 143IN | 250V | NEMA L6-15 | 25 FT | • | |
| 24W49A 163BLK | 24W49A 143BLK | 250V | NEMA L6-15 | 25 FT | • | |
| 24W49B 163 | 24W49B 143 | 250V | NEMA L6-15 | 50 FT | ||
| 24W49B 163IN | 24W49B 143IN | 250V | NEMA L6-15 | 50 FT | • | |
| 24W49B 163BLK | 24W49B 143BLK | 250V | NEMA L6-15 | 50 FT | • | |
| 24W49D 163 | 24W49D 143 | 250V | NEMA L6-15 | 100 FT | ||
| 24W49D163IN | 24W49D 143IN | 250V | NEMA L6-15 | 100 FT | • | |
| 24W49D 163BLK | 24W49D 143BLK | 250V | NEMA L6-15 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
