20 Amp WATERTITE® Receptacles
125V - 2 Pole, 3 Wire - NEMA 5-20 / NEMA L5-20
125V - 2-Pole, 3-Wire
- Spring loaded flip covers
- Built-in lock out/tag out capabilities
- Patented triple seal for the best in wet-location protection
Woodhead meets your receptacle needs head-on. Single, duplex or motor-based receptacles for wet abusive enviornments are covered by Watertite product solutions while general industrial applications are well served by nylon Safeway receptacles. Product photos are intended to show device style only, and are not intended to reflect indicated configurations.

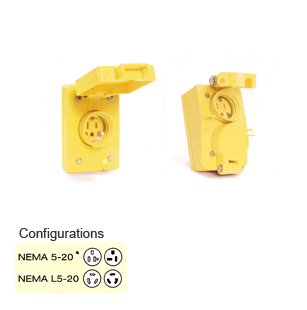

(part nos.65W33 and 65W33DPLX pictured on right)
20 Amp Wiring Devices (PDF) (372 KB)
20 Amp WATERTITE® Receptacles with Flip Coverplates
| Single Flip Lid |
Duplex Flip Lid |
Flip Lid w/ Male Receptacle |
Connector for Male Receptacle |
Voltage | Locking Blade |
NEMA Configuration |
| 60W33 | 60W33DPLX | 59W33 | 15W33MB | 125V | NEMA 5-20 | |
| 67W47 | 66W47 | 27W47MB | 125V | • | NEMA L5-20 |
WATERTITE® Single & Duplex GFCI Receptacle
| Receptacle Part No. |
Voltage | Type | NEMA Configuration |
| 60W33DPLXGF | 125V | Duplex | NEMA 5-20 |
| 67W47GF | 125V | Single | NEMA L5-20 |
WATERTITE® Pigtail Outlet
| Outlet Part No. |
Voltage | NEMA Configuration |
| 60W33 | 125V | NEMA 5-20 |
