30 Amp WATERTITE® Cordsets
125V/208V - 4 Pole, 5 Wire, 3ø - NEMA L21-30
277/480V - 4 Pole, 5 Wire, 3ø - NEMA L22-30
347V/600V - 4 Pole, 5 Wire, 3ø - NEMA L23-30
30 Amp Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

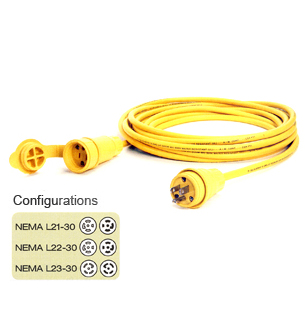

(part no. 14W33_143 pictured on right)
30 Amp Wiring Devices (PDF) (372 KB)
30 Amp WATERTITE® Cordsets 125V/208V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 28W81A 105 | 28W81A 125 | 125V/208V, 3ø | NEMA L21-30 | 25 FT | ||
| 28W81A 105BLK | 28W81A 125BLK | 125V/208V, 3ø | NEMA L21-30 | 25 FT | • | |
| 28W81B 105 | 28W81B 125 | 125V/208V, 3ø | NEMA L21-30 | 50 FT | ||
| 28W81B 105BLK | 28W81B 125BLK | 125V/208V, 3ø | NEMA L21-30 | 50 FT | • | |
| 28W81D 105 | 28814D 125 | 125V/208V, 3ø | NEMA L21-30 | 100 FT | ||
| 28W81D 105BLK | 28W81D 125BLK | 125V/208V, 3ø | NEMA L21-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp WATERTITE® Cordsets 277/480V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 28W82A 105 | 28W82A 125 | 277/480V, 3ø | NEMA L22-30 | 25 FT | ||
| 28W82A 105BLK | 28W82A 125BLK | 277/480V, 3ø | NEMA L22-30 | 25 FT | • | |
| 28W82B 105 | 28W82B 125 | 277/480V, 3ø | NEMA L22-30 | 50 FT | ||
| 28W82B 105BLK | 28W82B 125BLK | 277/480V, 3ø | NEMA L22-30 | 50 FT | • | |
| 28W82D 105 | 28W82D 125 | 277/480V, 3ø | NEMA L22-30 | 100 FT | ||
| 28W82D 105BLK | 28W82D 125BLK | 277/480V, 3ø | NEMA L22-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp WATERTITE® Cordsets 347V/600V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 28W83A 105 | 28W83A 125 | 347V/600V, 3ø | NEMA L23-30 | 25 FT | ||
| 28W83A 105BLK | 28W83A 125BLK | 347V/600V, 3ø | NEMA L23-30 | 25 FT | • | |
| 28W83B 105 | 28W83B 125 | 347V/600V, 3ø | NEMA L23-30 | 50 FT | ||
| 28W83B 105BLK | 28W83B 125BLK | 347V/600V, 3ø | NEMA L23-30 | 50 FT | • | |
| 28W83D 105 | 28W83D 125 | 347V/600V, 3ø | NEMA L23-30 | 100 FT | ||
| 28W83D 105BLK | 28W83D 125BLK | 347V/600V, 3ø | NEMA L23-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
