30 Amp WATERTITE® Cordsets
125V/250V - 3 Pole, 4 Wire - NEMA L14-30
250V - 3 Pole, 4 Wire, 3ø - NEMA L15-30
480V - 3 Pole, 4 Wire, 3ø - NEMA L16-30
600V - 4 Pole, 4 Wire, 3ø - NEMA L17-30
30 Amp Cordsets
Factory pre-made Watertite or Super-Safeway cordsets are made from heavy-duty SOW cord and the appropriate connector bodies that fit your enviornment. Product photos are intended to show style only and are not indtended to reflect indicated configurations.

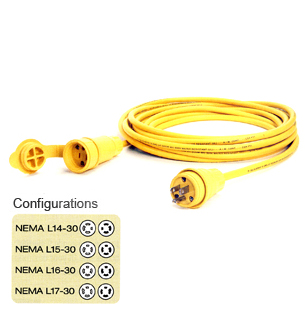

(part no. 14W33_143 pictured on right)
30 Amp Wiring Devices (PDF) (372 KB)
30 Amp WATERTITE® Cordsets 125V/250V
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 28W74A 104 | 28W74A 124 | 125V/250V | NEMA L14-30 | 25 FT | ||
| 28W74A 104BLK | 28W74A 124BLK | 125V/250V | NEMA L14-30 | 25 FT | • | |
| 28W74B 104 | 28W74B 124 | 125V/250V | NEMA L14-30 | 50 FT | ||
| 28W74B 104BLK | 28W74B 124BLK | 125V/250V | NEMA L14-30 | 50 FT | • | |
| 28W74D 104 | 28W74D 124 | 125V/250V | NEMA L14-30 | 100 FT | ||
| 28W74D 104BLK | 28W74D 124BLK | 125V/250V | NEMA L14-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp WATERTITE® Cordsets 250V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 28W75A 104 | 28W75A 124 | 250V, 3ø | NEMA L15-30 | 25 FT | ||
| 28W75A 104BLK | 28W75A 124BLK | 250V, 3ø | NEMA L15-30 | 25 FT | • | |
| 28W75B 104 | 28W75B 124 | 250V, 3ø | NEMA L15-30 | 50 FT | ||
| 28W75B 104BLK | 28W75B 124BLK | 250V, 3ø | NEMA L15-30 | 50 FT | • | |
| 28W75D 104 | 28W75D 124 | 250V, 3ø | NEMA L15-30 | 100 FT | ||
| 28W75D 104BLK | 28W75D 124BLK | 250V, 3ø | NEMA L15-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp WATERTITE® Cordsets 480V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 28W76A 104 | 28W76A 124 | 480V, 3ø | NEMA L16-30 | 25 FT | ||
| 28W76A 104BLK | 28W76A 124BLK | 480V, 3ø | NEMA L16-30 | 25 FT | • | |
| 28W76B 104 | 28W76B 124 | 480V, 3ø | NEMA L16-30 | 50 FT | ||
| 28W76B 104BLK | 28W76B 124BLK | 480V, 3ø | NEMA L16-30 | 50 FT | • | |
| 28W76D 104 | 28W76D 124 | 480V, 3ø | NEMA L16-30 | 100 FT | ||
| 28W76D 104BLK | 28W76D 124BLK | 480V, 3ø | NEMA L16-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
30 Amp WATERTITE® Cordsets 600V, 3ø
| 10 Gauge SOW Cordsets |
12 Gauge SOW Cordsets |
Voltage | NEMA Configuration |
Cordset Length |
UV Resistant Black |
|
| 28W77A 104 | 28W77A 124 | 600V, 3ø | NEMA L17-30 | 25 FT | ||
| 28W77A 104BLK | 28W77A 124BLK | 600V, 3ø | NEMA l17-30 | 25 FT | • | |
| 28W77B 104 | 28W77B 124 | 600V, 3ø | NEMA l17-30 | 50 FT | ||
| 28W77B 104BLK | 28W77B 124BLK | 600V, 3ø | NEMA l17-30 | 50 FT | • | |
| 28W77D 104 | 28W77D 124 | 600V, 3ø | NEMA l17-30 | 100 FT | ||
| 28W77D 104BLK | 28W77D 124BLK | 600V, 3ø | NEMA l17-30 | 100 FT | • | |
| CLICK ON A PART NUMBER FOR MORE OPTIONS | ||||||
